Ventilation hose for GS460 URS190

Click on the part subgroup below to get genuine part numbers.

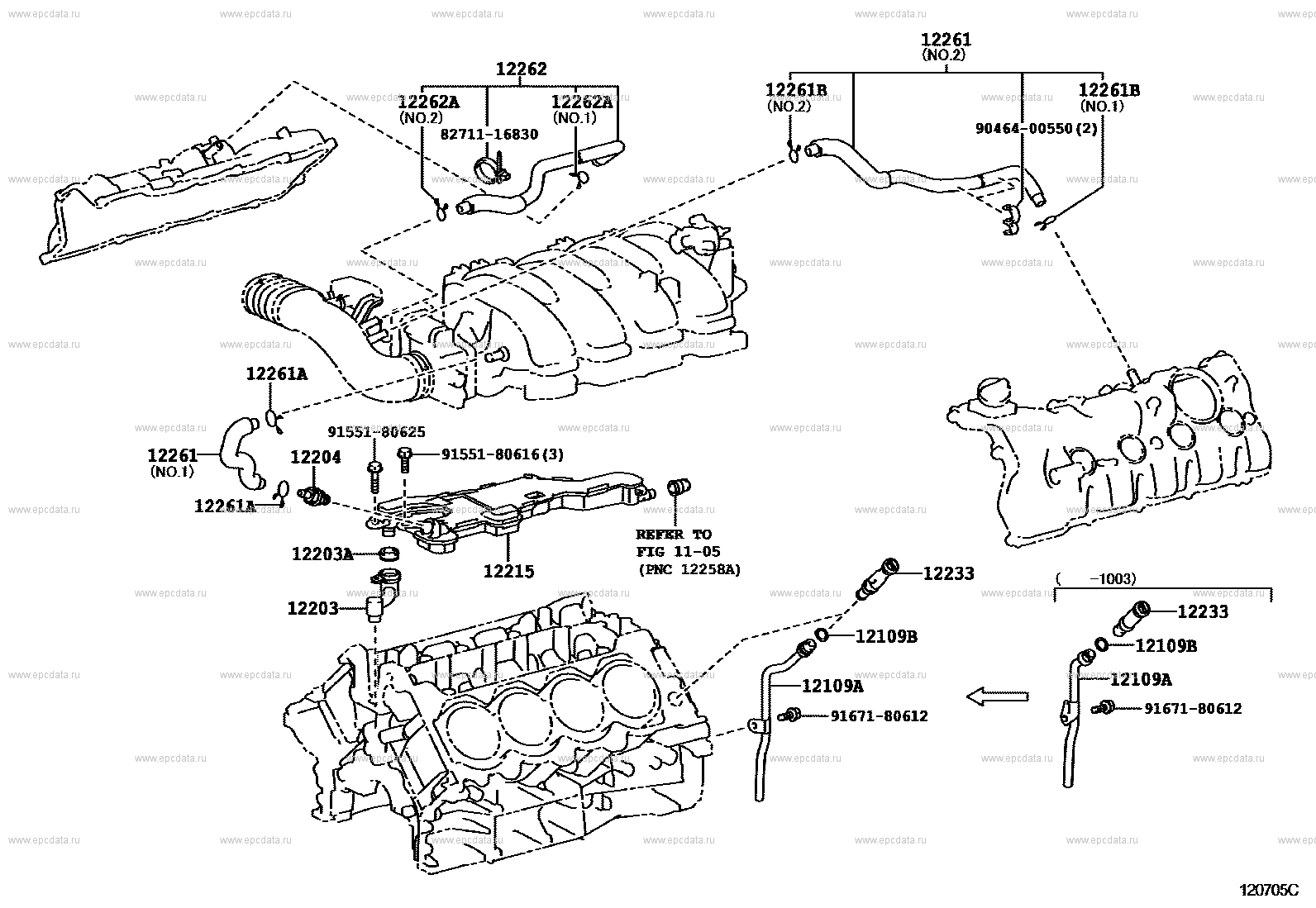

(0709- )1URFSE Open full size scheme

Click part number in the scheme or in the list: ** 11-05 12262 HOSE, VENTILATION, NO.2 12261 HOSE, VENTILATION 8271116830 ** Std Part 12261A CLIP OR CLAMP(FOR VENTILATION HOSE) 12109A PIPE SUB-ASSY, OIL DRAIN 12109B RING, O(FOR OIL DRAIN PIPE) 12203 PIPE SUB-ASSY, VENTILATION 12203A GASKET(FOR VENTILATION PIPE) 12204 VALVE SUB-ASSY, VENTILATION 12215 SEPARATOR, CASE 12233 CONNECTOR, VENTILATION NO.1 9155180616 ** Std Part 9155180625 ** Std Part 9167180612 ** Std Part 12261B CLIP OR CLAMP(FOR VENTILATION HOSE) 12262A CLIP(FOR VENTILATION HOSE NO.2) 9046400550 ** Std Part

GS460 URS190
